2027 XL SPECIALIZED XL 90 HDE DEFENDER

Name: 2027 XL Specialized XL 90 HDE Defender
Brand: INTERSTATE 365
SKU: 9595
Price: 167200 USD
Availability: BackOrder

$ 167,200.00

Available on backorder

Condition: New

Categories: HDE Trailers, New Trailers, Trailers

Available on backorder

Axle Configuration Rear Axle Fix

Wheels Inside Steel, Outside Aluminum

Scales No

Tires 255/70R 22.5 Yokohama

Warranty 5-year structural warranty

Gooseneck Length 10' 5"

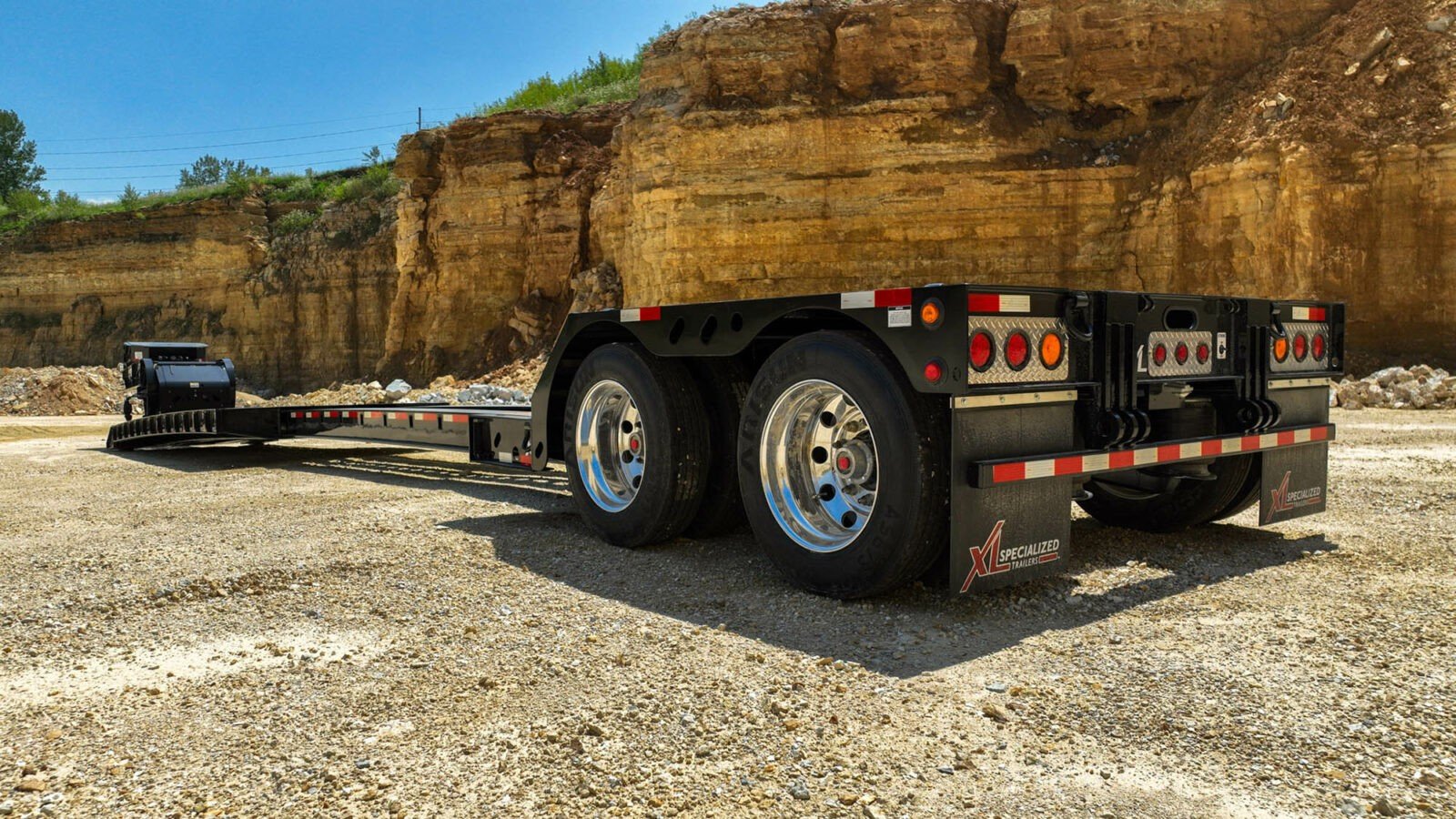

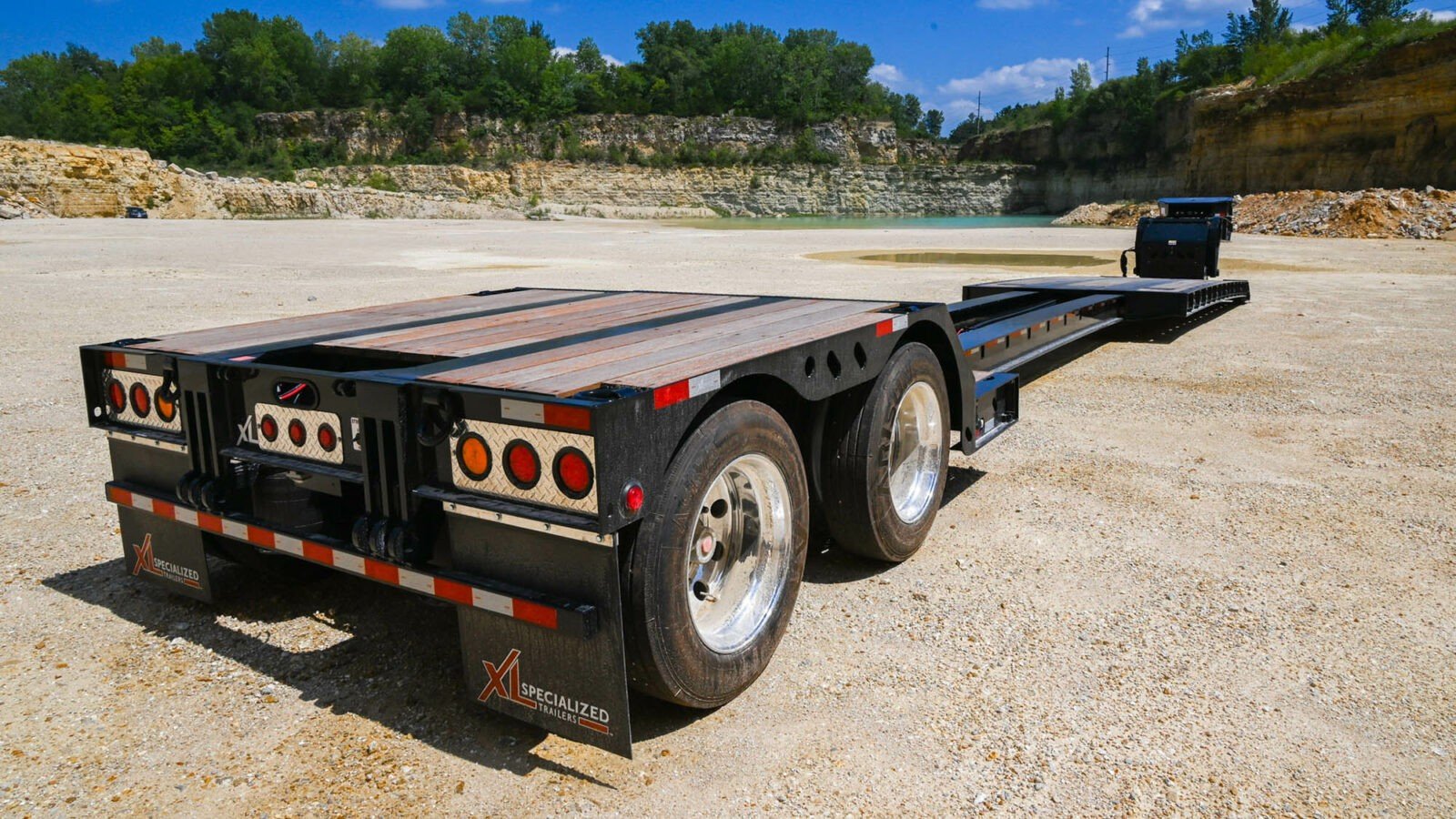

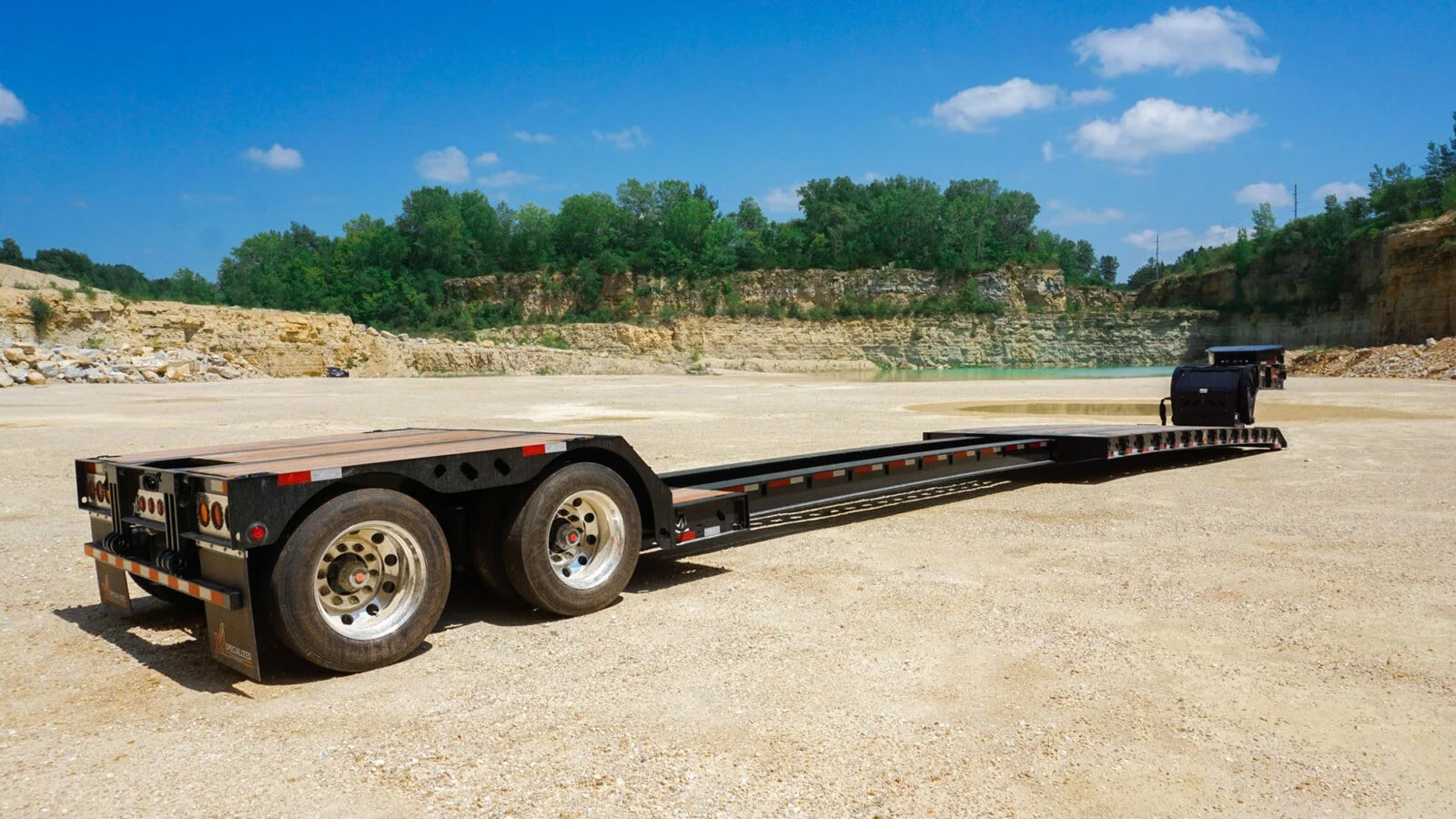

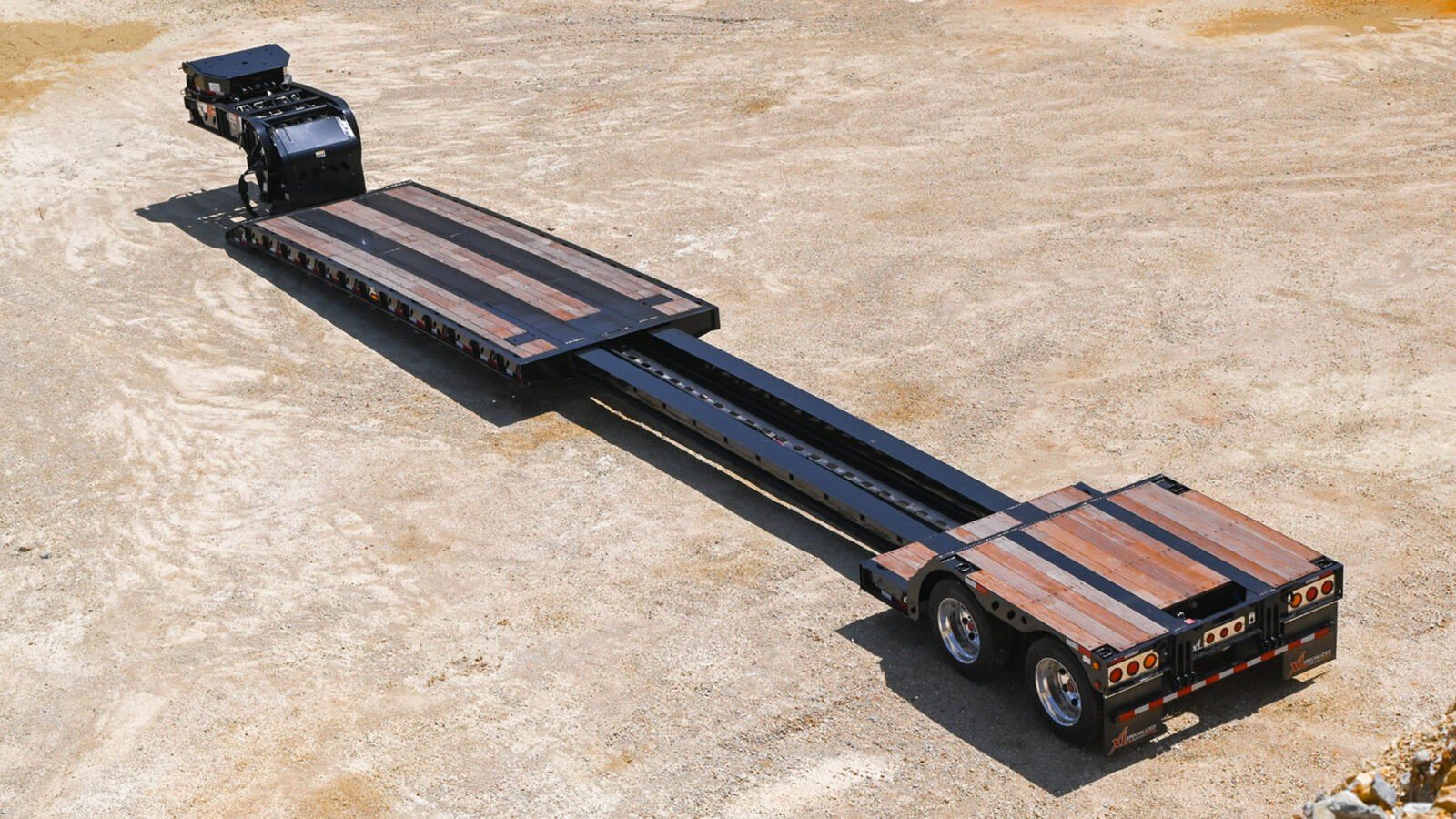

XL Specialized XL 90 Hydraulic Detachable Extendable 48′ Defender for Sale

The XL Specialized XL 90 Hydraulic Detachable Extendable Defender is built for haulers who need serious capacity, practical deck length flexibility, and fast loading in the field. With a 90,000 lb overall capacity, hydraulic detachable gooseneck, and XL’s Extend-A-Trac system, this trailer gives operators a dependable setup for heavy equipment and longer loads.

Designed for demanding heavy haul work, the Defender combines a 20-inch loaded deck height, 7-position variable ride height, Apitong decking, and 2-axle booster prep in one rugged package. The extendable main deck lets you haul longer freight when needed, then retract the trailer when a shorter setup makes more sense.

Additional Features:

Hydraulic detachable classic gooseneck
Extendable main deck with 24-inch extension stops
XL Extend-A-Trac system
7-position variable ride height
8 bent D-rings per side
Chain drops on 24-inch centers
Removable swing-out outrigger brackets on 24-inch centers
1 1/8-inch Apitong decking
Prep for 2-axle booster
25,000 lb air ride suspension
LED light package with aluminum cover
Hydraulics run off wet kit

Pricing: Includes Federal Excise Tax (FET).

General
Brand	XL SPECIALIZED TRAILERS
Overall Length	48'
Overall Width	102"
Capacity	90,000 LB EVENLY DISTRIBUTED FULLY CLOSED, 35,000 LB IN 5' AT FRONT AND REAR OF MAIN DECK FULLY EXTENDED (70,000 LB TOTAL)
Weight +/-3%	24,350 LB

GOOSENECK
Neck Style	CLASSIC
Length	10' 5"
Kingpin Setting	16"
Swing Clearance	84"
5th Wheel Height	49" W/ 7 VARIABLE RIDE HEIGHT POSITIONS
Hydraulics	RUNS OFF WET KIT (5 TO 12 GPM HYD. REQUIRMENTS0, W/ ALUMINUM COVER STANDARD
Decking	1 1/8" APITONG DECKING, FLUSH, 2' X 2' CUT OUT IN TRANSITION AREA
D-Rings	BENT D-RINGS PER SIDE
Mudflaps	N/A
Tool Box	N/A
Flip Neck

MAIN DECK
Length	28' 7" / OPENING TO 49' 11" - 30" STATIONARY DECK
Loaded Deck Height	20" W/ 6" GROUND CLEARANCE
Decking	1 1/8" APITONG DECKING, FLUSH, 2' X 2' CUT OUT IN TRANSITION AREA
Crossmembers	6" JR. I-BEAM AND KNEE BRACES ON 12" ALTERNATING CENTERS
Beams	FAB I-BEAMS
D-Rings	BENT D-RINGS PER SIDE
Outriggers	REMOVABLE SWINGING OUTRIGGERS "BRACKETS ONLY' ON 24' CENTERS (STANDARD)
Chain Drops	24" CENTERS - OUTSIDE BEAMS
Ramps	TAPERS TO 4", ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS, EXTENSION STOPS ON 24" CENTERS

REAR DECK
Length	9'
Loaded Deck Height	40"
Axles	25,000 LBS. NOMINAL (5/8" WALL)
Suspension	HENDRICKSON / 25,000 CAPACITY/ AIR RIDE
Axle Spacing	54"
ABS	4S2M WITH SPRING BRAKES ON ( 2 ) AXLES
Tires	255 / 70R / 22.5 ( H )
Wheels Inside	STEEL DISC
Wheels Outside	ALUMINUM POLISHED
Brakes	16 1/2'' X 7"
Drums	OUTBOARD
Electrical	12V SEALED GROTE SYSTEM WITH, TAILLIGHT ALUMINUM PACKAGE 4", AMBER STROBE TO BE USED AS 3RD TAILLIGHT, ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS, BATTERY BACKUP W/ 4 WAY PLUGб ADDITIONAL PAIR OF 3/4" LED CLEARANCE LIGHTS
Decking	1 1/8" APITONG DECKING, FLUSH, 2' X 2' CUT OUT IN TRANSITION AREA
D-Rings	PAN STYLE D-RING IN EACH CORNER OR PAIR FLAT D-RINGS ON REAR TRANSITION OR BENT D-RINGS IN TAIL CHANNEL
Bracket Connection	TYPE С
Rear Connection	PREP FOR FLIP AXLE OR PAIR PULLOUT LIGHTS

Miscellaneous
Paint	BLACK
Air System	MANUAL RIDE HEIGHT CONTROL, COLAS+ RAISE AND LOWER VALVE, LIQUID FILLED AIR GAUGE
Additional	PAIR EZ MOUNT FLAG HOLDERS, RUBBER GLAD HAND COVERS, ALL CLEARANCE LIGHTS TO BE 3/4" LED LIGHTS
Vin Plate	DOMESTIC
