If you’re in the world of trucking or shipping, you’ve probably heard the term step deck trailer—but what exactly is it? How is it different from a standard flatbed trailer, and when should you use one?
Whether you’re a new driver, a fleet manager, or a logistics coordinator looking to understand trailer types better, this article breaks down what a step deck trailer is, why it matters, and how it can help you move tall, heavy, or oversized loads with ease.
Step Deck Trailer: Definition

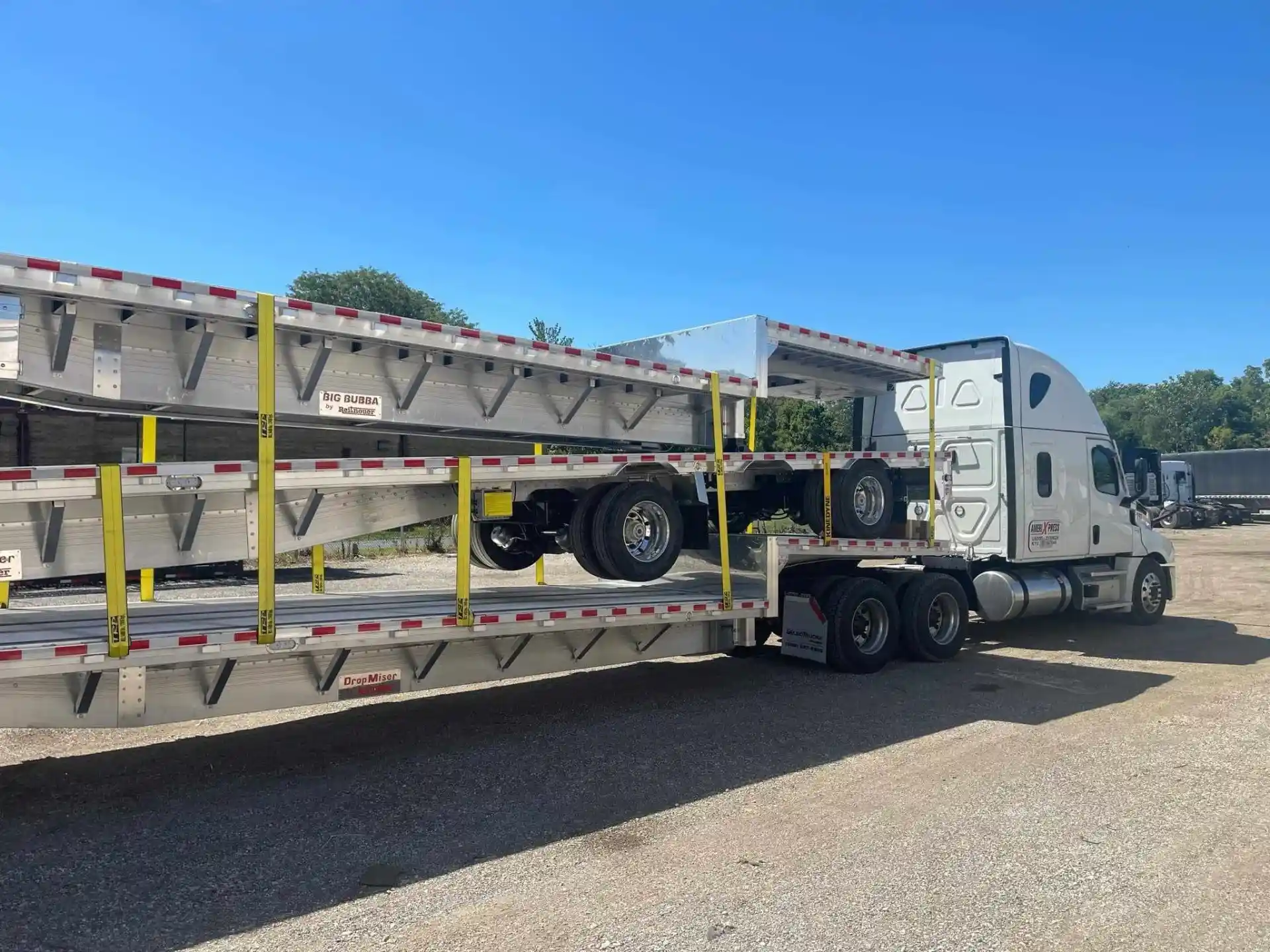

A step deck trailer, also called a drop deck trailer, is a type of flatbed trailer that has two levels: an upper deck near the front and a lower deck that drops down after the front axle. This unique design allows for taller cargo to be loaded and transported without exceeding legal height limits.
Think of it like a flatbed trailer—but with a “step down” in the middle, giving you extra vertical space for larger equipment.
Why Use a Step Deck Instead of a Standard Flatbed?
The main reason people choose step decks is because of height clearance. In most of the states, the legal maximum height for a loaded trailer is 13 feet, 6 inches. If your cargo sits too high on a regular flatbed (which usually has a deck height of about 60 inches), you could go over that limit, leading to expensive oversized permits or route restrictions.
Step deck trailers solve this by dropping the deck height down to about 36–42 inches, which allows for cargo up to 11 feet tall to be hauled safely and legally. Low-profile step decks have a deck height of 35 inches and even less.
Quick Comparison: Step Deck vs. Flatbed Trailer
| Feature | Flatbed Trailer | Step Deck Trailer |
| Deck Height | ~60 inches | Upper: ~60″, Lower: ~36″ |
| Max Freight Height | ~8.5 feet (102″) | ~10 feet (120″) |
| Loading Access | Sides, rear, top | Sides, rear, top |
| Ideal for | Standard freight | Tall or oversized cargo |
| Requires Ramps? | Optional | Often included |
Step Deck Trailer Dimensions
Most step deck trailers follow standard industry dimensions, but exact specs may vary slightly depending on the manufacturer or customization.
- Upper deck length: ~10–11 feet
- Lower deck length: ~37–43 feet
- Total trailer length: Usually 48 or 53 feet
- Deck width: 8’6” (102 inches)
- Load height (max cargo height): ~11 feet (120 inches)
- Weight capacity: Typically 40,000 to 48,000 lbs, for 2 axles configuration.

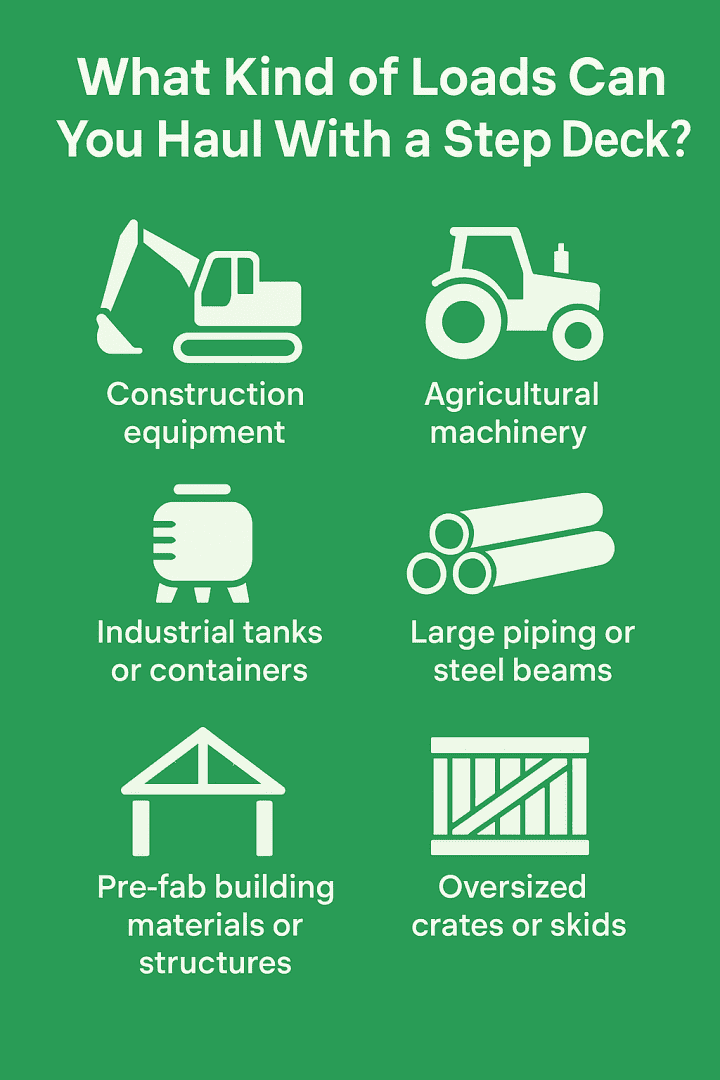

What Kind of Loads Can You Haul With a Step Deck?
Step deck trailers are built for taller or bulkier items that wouldn’t fit within the height limits of a standard flatbed. Here are some common examples:
- Construction equipment (excavators, bulldozers, backhoes)
- Agricultural machinery (tractors, combines)
- Industrial tanks or containers
- Large piping or steel beams
- Pre-fab building materials or structures
- Oversized crates or skids
Basically, if it’s too tall for a regular flatbed but doesn’t need a specialized trailer like a double drop, the step deck is a great in-between solution.
Advantages of Using a Step Deck Trailer
1. More Height Without a Permit
Avoid oversized load restrictions by transporting tall cargo legally, saving money and simplifying routing.
2. Safer Loading
The lower deck height means less lifting distance when loading heavy equipment with a forklift or crane.
3. More Flexibility
With the right setup, you can add ramps to roll machinery or vehicles onto the lower deck.
4. No Roof or Sides
Just like a flatbed, the step deck is open, which means you can load from the sides, back, or top with ease.
5. Ideal for Forklift Access
The lower height makes forklift access smoother and less risky, especially on uneven job sites.
When Should You Use a Step Deck Trailer?
A step deck trailer is the best choice when:
- Your freight is too tall for a standard flatbed
- You want to avoid height permits
- You need easier loading for heavy or bulky items
- You’re delivering to a site with limited dock access
For example, let’s say you’re moving a piece of construction equipment that stands 9 feet tall. On a regular flatbed, that would bring your total height to almost 14 feet, above the legal limit. But with a step deck, the trailer sits lower, so you stay under that 13’6” legal limit and avoid needing an oversized permit.
Do Step Deck Trailers Come With Ramps?
Some do, some don’t—it depends on the model. Many step deck trailers include ramps, which make it easy to load wheeled equipment like skid steers or mini excavators without a forklift.
If you’re hauling machinery regularly, look for a trailer with built-in ramps or invest in detachable aluminum ramps that can be stored on board.
What About Extendable Step Decks?
For even longer loads, there are extendable step deck trailers (also called stretch drop decks). These trailers can expand from 48 to 80+ feet in total length, allowing you to carry long steel beams, wind turbine blades, or bridge parts while still maintaining the lower deck benefits.
Do You Need Special Permits to Haul With a Step Deck?
Not usually, as long as your cargo stays within legal dimensions (height, width, length, and weight). If your load:
- Exceeds 13’6” in height
- Is wider than 8’6”
- Weighs more than 80,000 lbs GVWR
…you’ll need special oversized or overweight permits, regardless of the trailer type.
But one of the big advantages of a step deck is that it lets you move tall cargo without those extra permits in many cases.
How Much Does a Step Deck Trailer Cost?
The price can vary based on size, brand, features, and whether it’s new or used. On average:
- Used step deck trailers: $15,000–$30,000
- New step deck trailers: $35,000–$65,000+
If you’re investing in high-end features like air-ride suspension, hydraulic ramps, or aluminum framing, expect to pay toward the higher end.
Is a Step Deck Trailer Right for You?
A step deck trailer is ideal if:
- You often haul tall equipment
- You want to avoid the hassle of oversize permits
- You need loading flexibility with forklifts, cranes, or ramps
- You want a trailer that handles both flatbed-style and taller freight
For many carriers and logistics companies, adding a step deck trailer to their fleet expands what they can haul and opens the door to more high-value contracts.
Putting It All Together
So, what is a step deck trailer? In short, It’s a versatile flatbed trailer with a lowered deck that lets you transport tall, heavy, or awkward cargo without worrying about height restrictions.
Whether you’re moving construction equipment, shipping oversized crates, or running a logistics business, a step deck trailer gives you added flexibility, better safety, and fewer legal headaches.
Looking to buy or lease a trailer that fits your growing business needs? A step deck trailer might be the smart choice that helps you go further—safely, efficiently, and legally.
